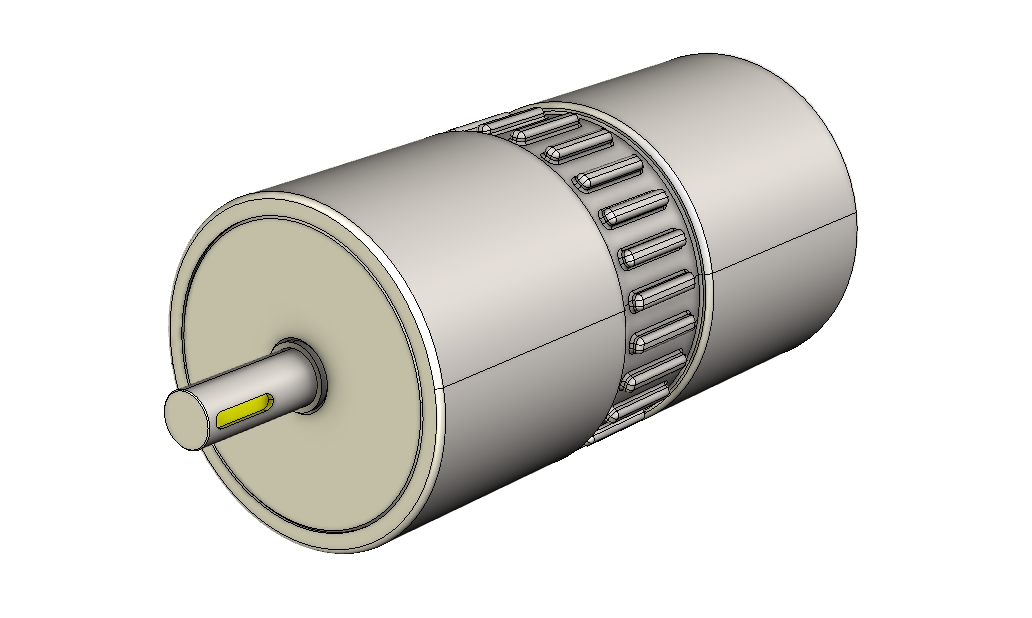

1000nm Powered Shaft

IP69k - PART # OS60-800-406-265-11470

PART NO.
OS60-800-406-265-11470

GEARLESS. OIL FREE. PERMANENT SEAL.

  • IP69k Powered Shaft

  • Designed for hygienic applications.

  • Highly efficient magnetic driven motion.

Our 11" Diameter 1,000 Nm, 738 ft/lb. This One Motion Mag-Drive is moving 10,000 lbs. of product per hour for less than 400 watts of power.


Reliability: The Mag-Drive eliminated: External 2 hp (1,500 watts) electric motor, 160:1 reduction (2 gearboxes). These devices contained 24 bearings plus the 2 bearings used to support the existing pulley. This Mag-Drive has three bearings that are rotating at less than 5 RPM.


This unit can operate from 0 RPM to 128 RPM, the normal range for this application is .5 RPM (1 Hz) to 5 RPM (10 Hz).


Powered Shaft, IP69k, 1000Nm (738 lb-ft) Single Core: 380mm (14.96") 48N/52P G3.1.16.71, 280mm (11"), 610mm (24"), Volta SuperDrive Cut shell, IP69k-Junction Box, Conduit Threads: 1/2 NPT, Four Flats(75mm) Flat Width #1: 25.4mm (1") | Flat Width #2: 0mm (0"), Offset #1: 20mm (0.79 , 24 Tooth, Pitch 11.9”

Designed to outlast and outperform conventional drive systems.

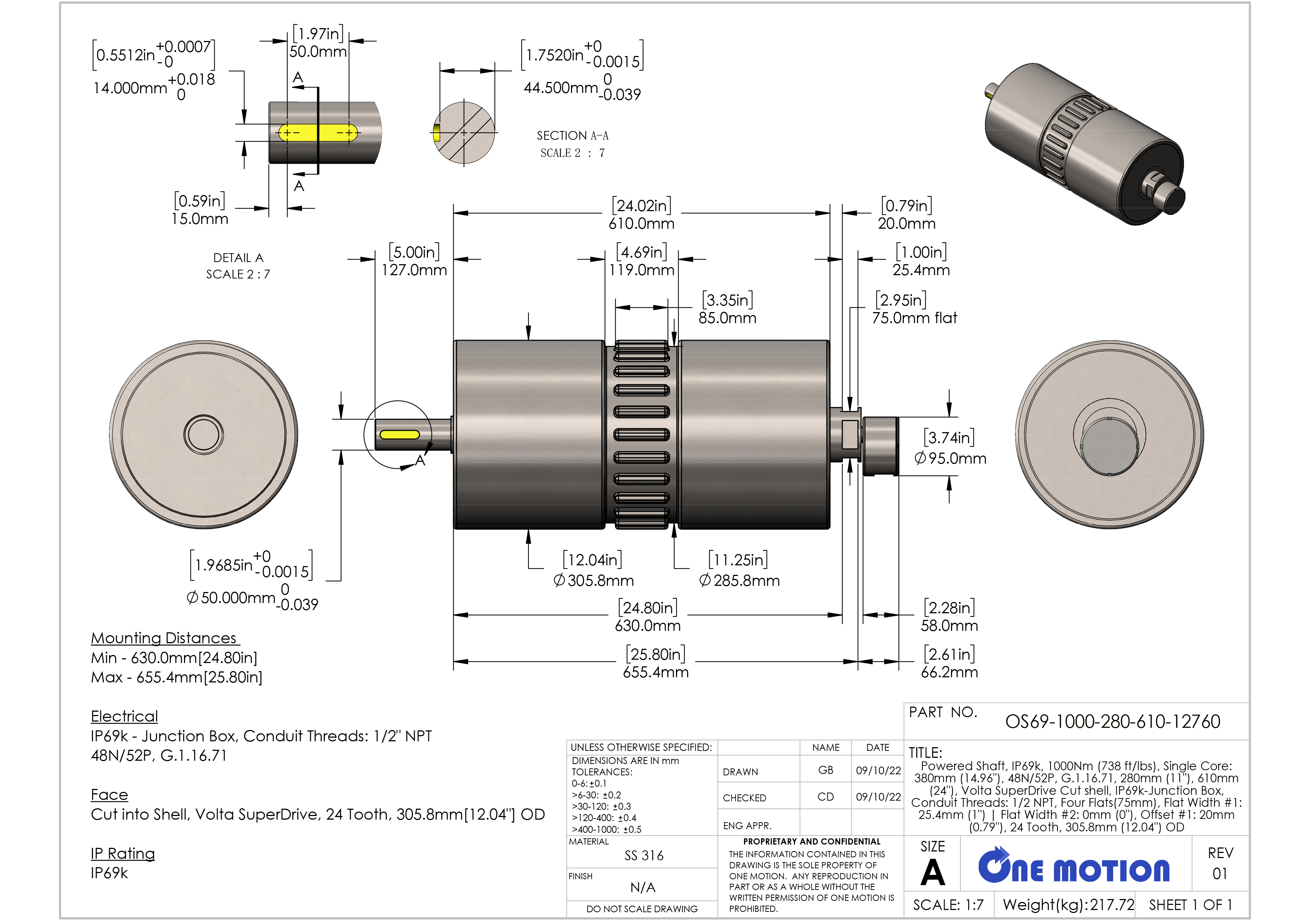

Technical Drawing

Tap to expand

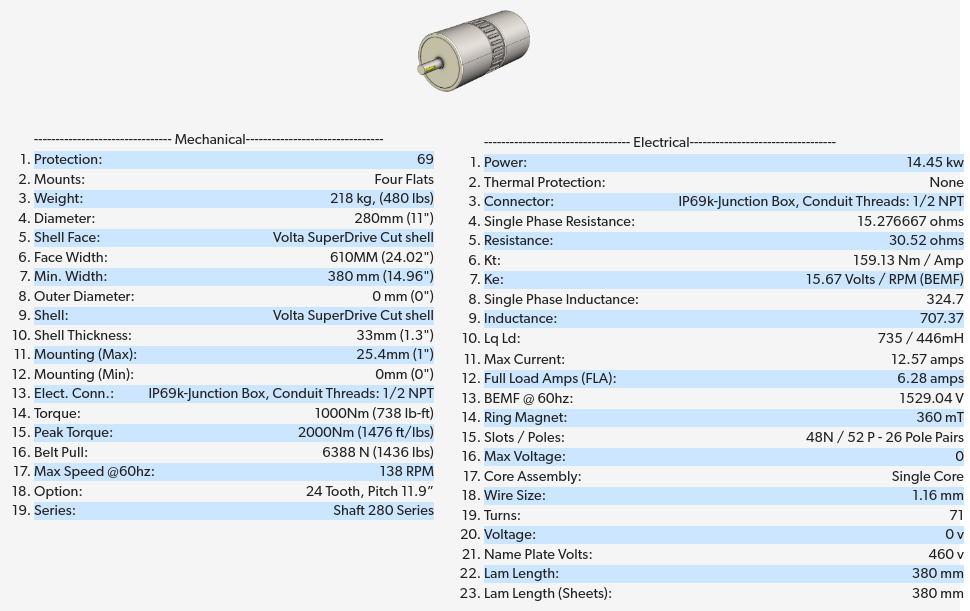

Detailed Specifications
