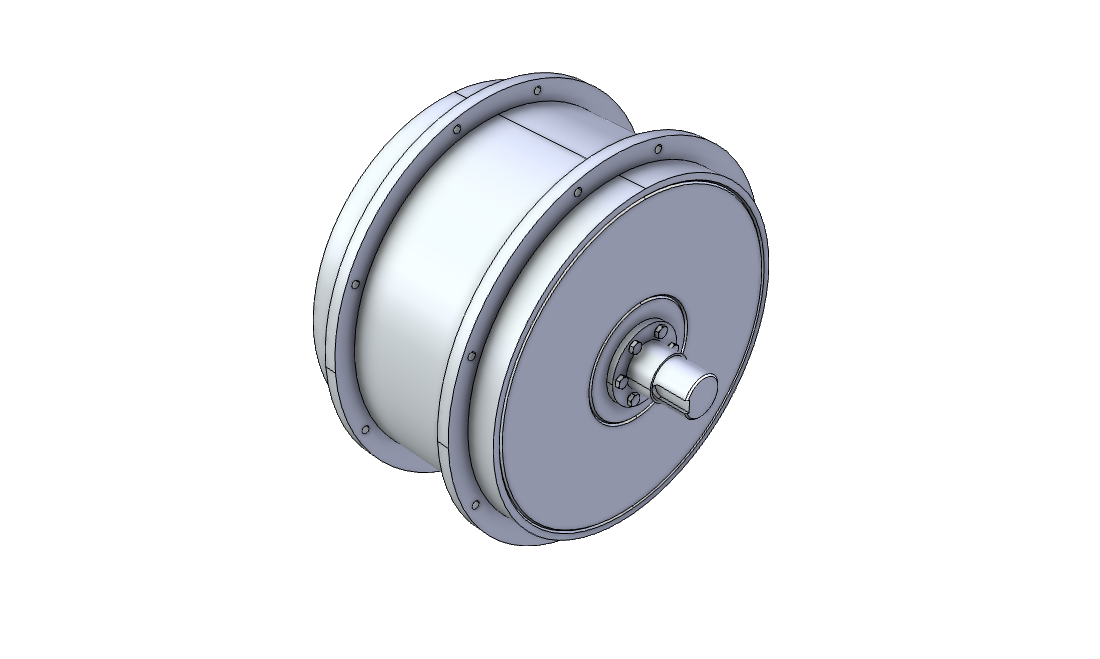

406mm Powered Shaft

IP69k - PART # OS60-800-406-265-11470

PART NO.
OS60-800-406-265-11470

GEARLESS. OIL FREE. PERMANENT SEAL.

  • IP69k Powered Shaft

  • Designed for hygienic applications.

  • Highly efficient magnetic driven motion.

This product was developed for use by the worlds largest poultry producer. It was designed to run conveyer systems for a chicken de-boning line.


Powered Shaft, IP69k, 800Nm (590.4 lb-ft) Single Core: 150mm (5.91") 60N/64P G3.1.2.55, 406mm (16"), 265mm (10.4"), Special, IP69k-Junction Box, Conduit Threads: 1/2 NPT, Bolt Mount, Offset #1: 25.1mm (0.99 , Powered Shell/Shaft Combination

Designed to outlast and outperform conventional drive systems.

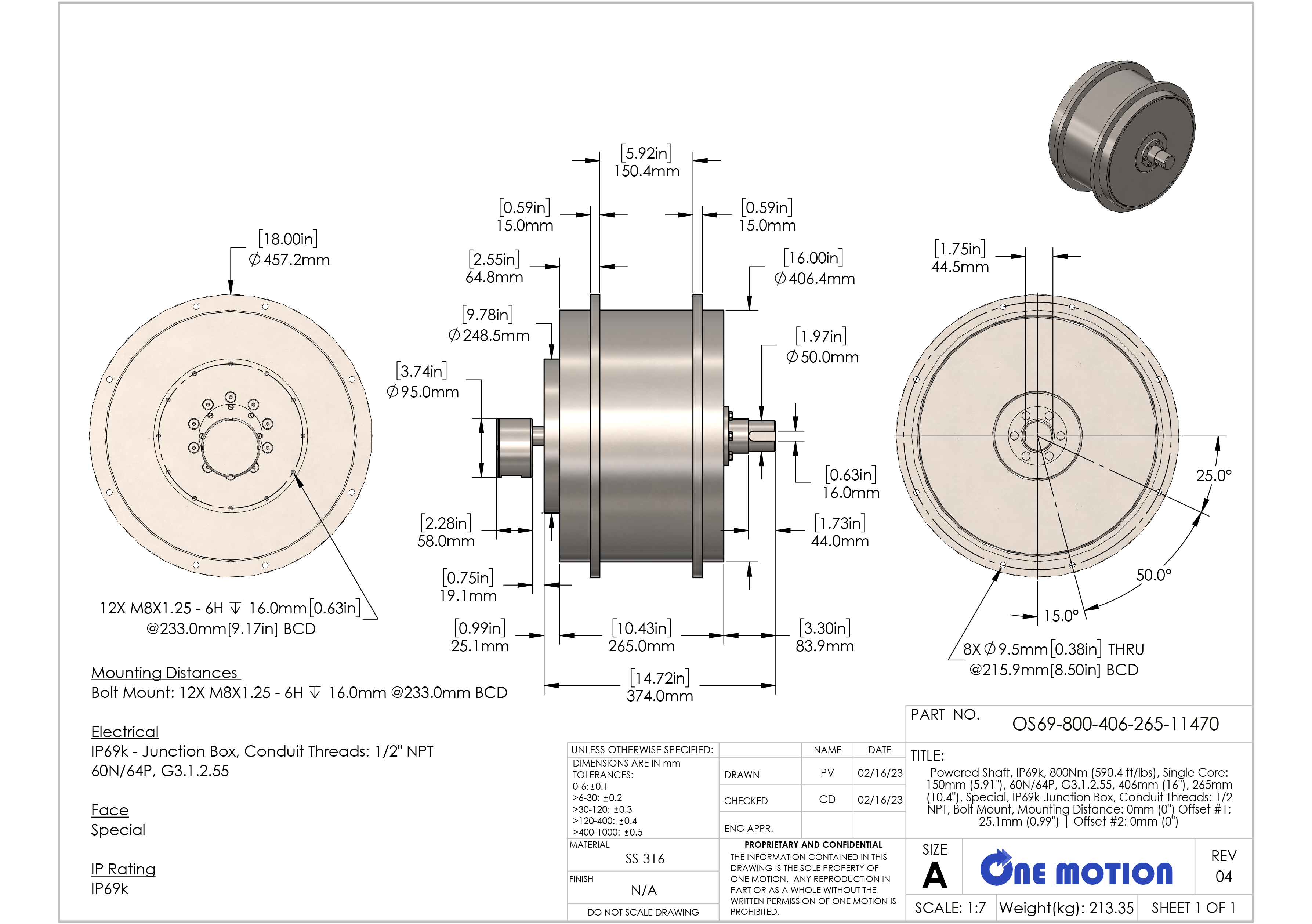

Technical Drawing

Tap to expand

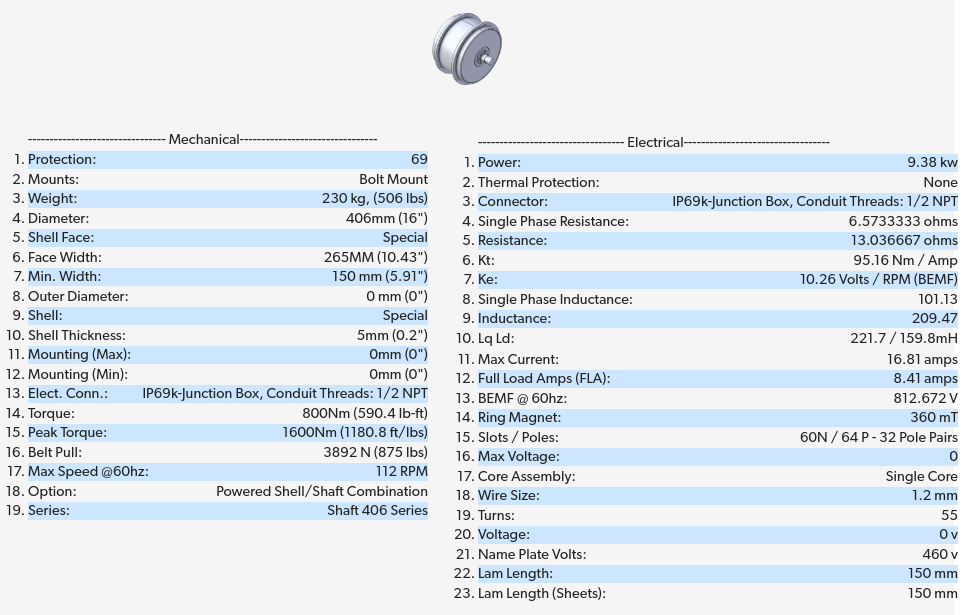

Detailed Specifications

Tap to expand
