Powered Pulley

IP69k - PART # OD69-15-81-305-12422

DESIGNED FOR HYGIENIC CONVEYING

One Motion powered pulleys utilize magnetic, direct-drive technology, eliminating the need for gears or other external components and making it the leader in efficiency and reliability. This simple design ensures your processes, machinery and conveyors keep running.

Designed to outlast and outperform conventional drive systems.

PART NO.
OD69-15-81-305-12422

GEARLESS. OIL FREE. PERMANENT SEAL.

  • IP69k Powered Pulley

  • Designed for hygienic applications.

  • Highly efficient magnetic driven motion.

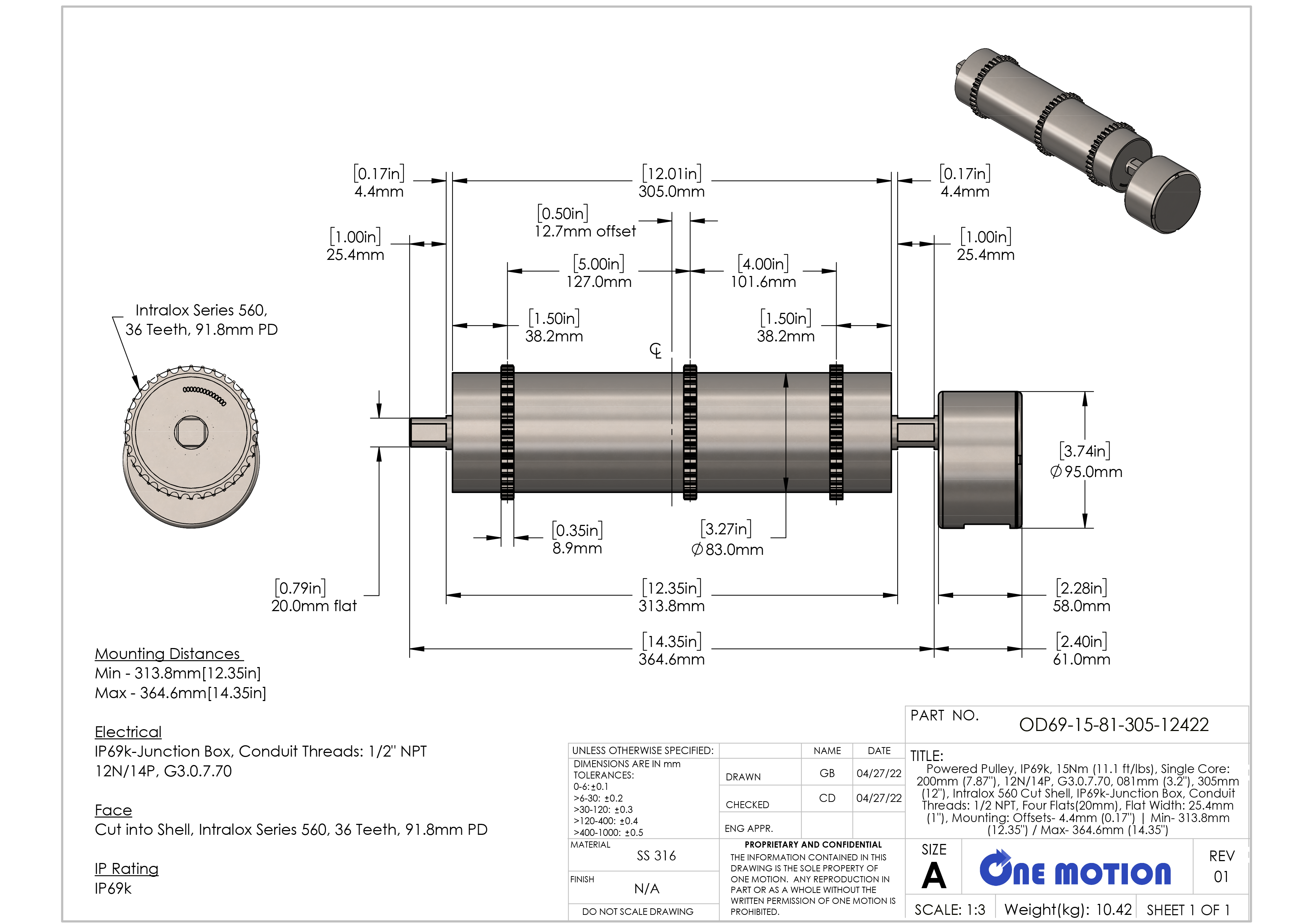

Technical Drawing

Tap to expand

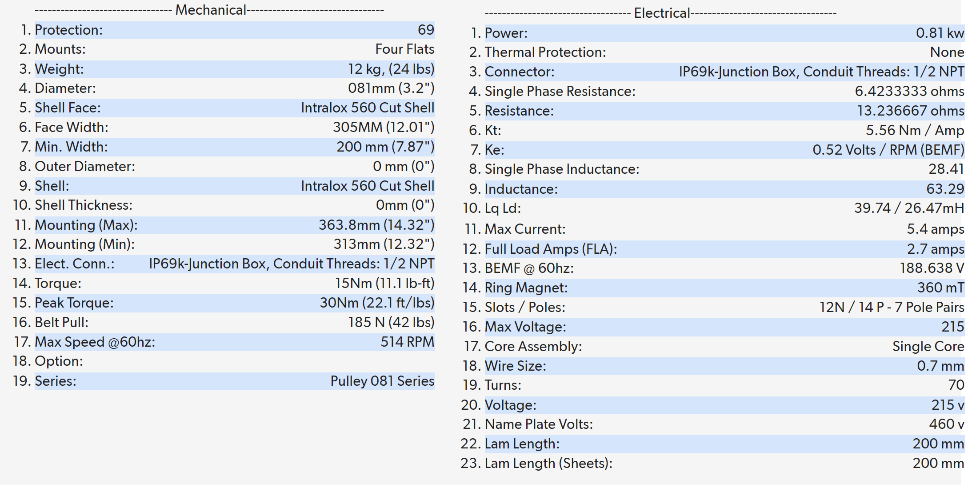

Detailed Specifications

Tap to expand
